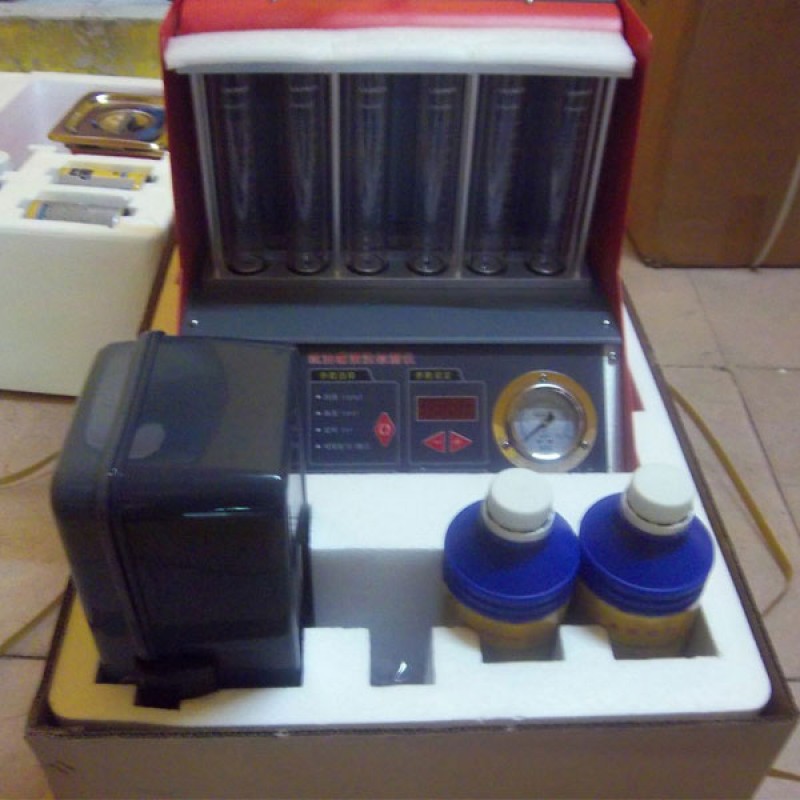

Original Launch X431CNC-602A Injector Cleaner & Tester 220V

Launch X431 CNC-602A Injector Cleaner & Tester

Important notice: Because liquid can not be shipped by air,when you send out,there will not Injector test liquid and Injector detergent inside the package,but you can purchase it from your local market. Please kindly consider.Liquid picture is for display.

Launch X431 CNC-602A Function:

Leakage test: To test the sealing and dribbling conditions of injectors under system pressure.
Ultrasonic cleaning: To perform simultaneous cleaning on several injectors and to remove the carbon deposits on the injector completely.
Uniformity/Sprayability test: To test the uniformity of injecting amount of each injector, and to monitor the spraying status of each injector with the help of backlight. This test is also for reverse flush.
Injecting flow test: To check the injecting amount of the injector in 15 seconds of constant injection.
Auto. test: To test injectors by simulating different working conditions.
On-vehicle cleaning: The unit is equipped with various adaptors and couplers that facilitate cleaning on the injectors on vehicle.

Launch X431 CNC-602A Techenical Parameter:

Power supply: AC220V±10%, 50/60Hz; AC110V±10%, 50/60Hz.
Ultrasonic cleaner power: 100W;
Input power: 250W;
Simulated RPM range: 10~9990rpm; step: 10rpm;
Time range: 1~9999s;
Pulse width: 0.5~25ms; step 0.1 ms;
Fuel tank capacity: 4700ml;

Launch X431 CNC-602A Spare Parts


No.	Part Code	Part Name
1	105020217	CNC pulse signal connection cable 1,T=0.5
2	105020218	CNC pulse signal connection cable 2,T=0.8
3	103260037	Ultrasonic cleaner assembly 100W
4	106030038	On-vehicle adaptor package(tool kits)
5	107010428	CNC-602A user manual(En&Ch)
6	103250013	Top-supply connector 1
7	103250015	Swiss thread adaptor for fuel top-supply injector
8	103250016	Coarse thread adaptor for fuel top-supply injector
9	103250018	CNC-601/801 Hexangular stopper
10	104990012	CNC-801 BUICK injector adaptor
